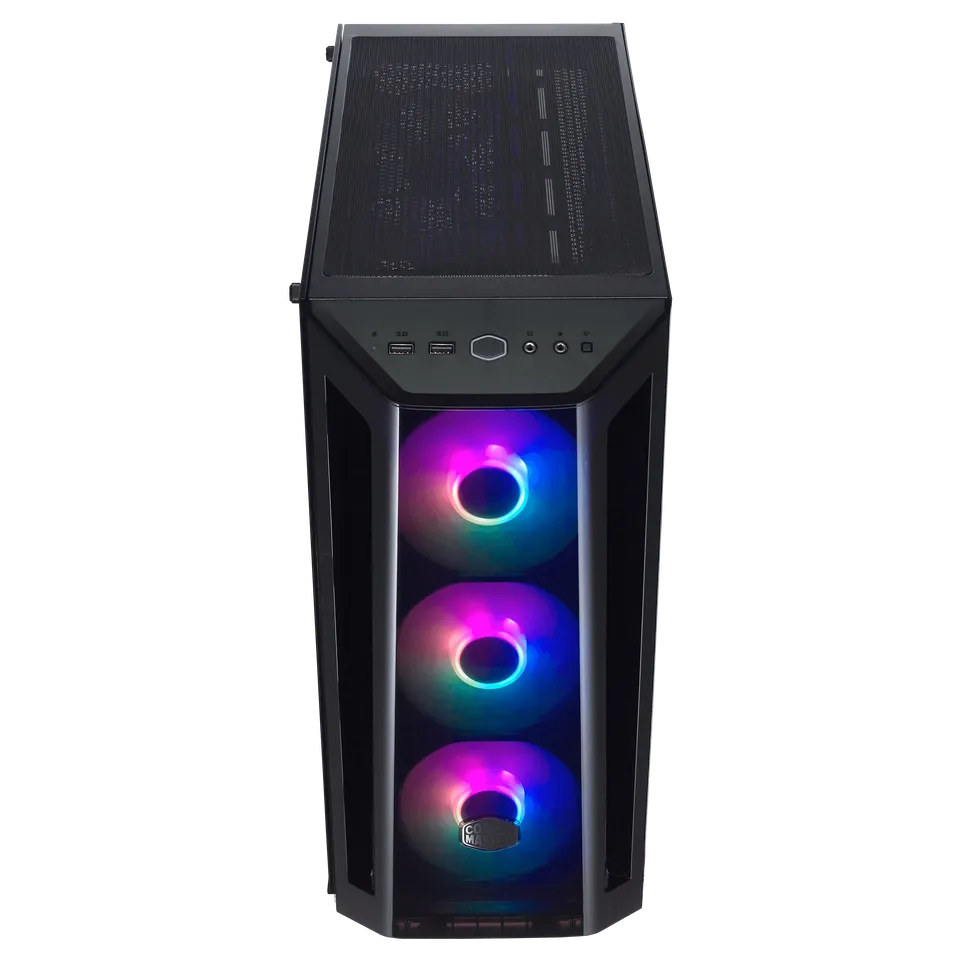

BOITIER COOLER MASTER MB520 ARGB

Materials Steel
Radiator Support – Rear 120mm
Power Supply Support Bottom Mount
Dust Filters Top
5.25″ Drive Bays N/A
Dust Filters Front
Materials Plastic
Color(s) Black
Series MasterBox Series
Size Mid Tower
Radiator Support – Front 360mm
Motherboard Support SSI CEB*
Cable Routing 19~27mm
Materials Tempered Glass
Dust Filters Bottom
Radiator Support – Top 360mm
Power Supply Support ATX
Clearance – PSU 180mm/7.08″
Fan Support – Rear 1x 120mm
Radiator Support – Front 280mm
2.5″ / 3.5″ Drive Bays (Combo) 2 (Max.2)
Motherboard Support E-ATX*
Radiator Support – Front 240mm
Radiator Support – Top 240mm
Fan Support – Front 2x 140mm
Expansion Slots 7
Radiator Support – Front 140mm
Motherboard Support ATX
Motherboard Support Micro ATX
Radiator Support – Top 120mm
Radiator Support – Front 120mm
Fan Support – Top 2x 140mm
Fan Support – Front 3x 120mm
Clearance – CPU Cooler 165mm/6.49″
Fan Support – Top 3x 120mm
Motherboard Support Mini ITX
Radiator Support – Top (44mm max motherboard component height)
Radiator Support – Front (75mm clearance)
Pre-installed Fans – Rear 1x 120mm 1000-1400RPM MasterFan Lite
Motherboard Support (*up to 12″ x 10.7″ motherboards, may impact cable management feature)
Clearance – GFX 410mm/16.1″
Weight 6.59 kg
Pre-installed Fans – Front 3x 120mm 650~1800RPM SickleFlow PWM ARGB
2.5″ Drive Bays 4 (Max.6)
I/O Panel 2 x USB 3.2 Gen 1 (USB 3.0), 1 x 3.5mm Audio Jack,1 x 3.5mm Mic Jack, 1x ARGB/PWM Hub (may depend on region and model)
Dimensions (L x W x H) 496 x 217 x 469 mm
Model Number MCB-B520-KGNN-RGA
