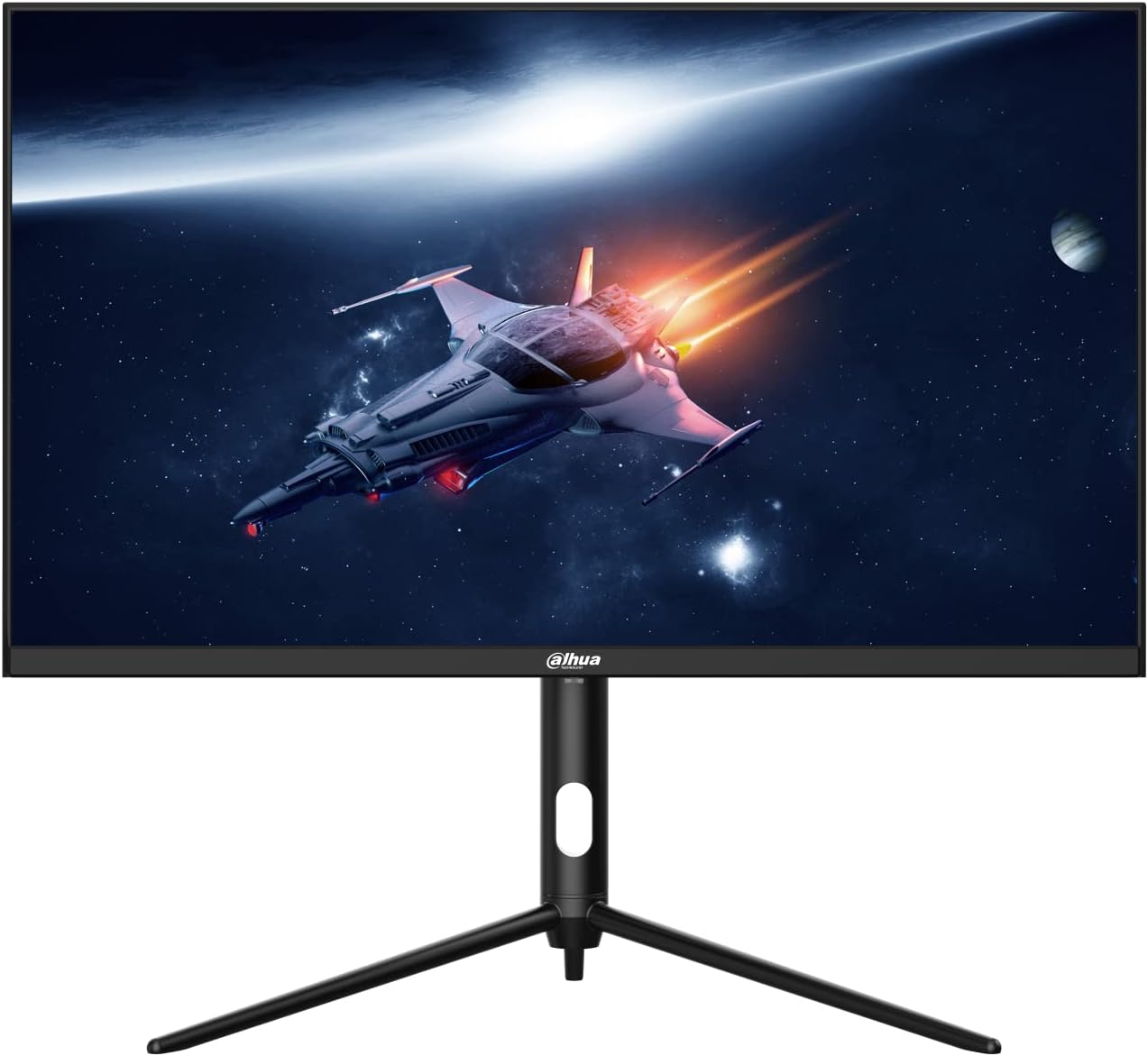

ECRAN DAHUA 24E231

Model

Model DHI-LM24-E231

Display

Screen Size 23.8″

Panel type IPS

Aspect Ratio 16:9

Resolution 1920×1080

Backlight E-LED

Brightness/Luminance 300nits(typ)
Contrast Ratio 1000:1

Color Support 100% sRGB, 85% NTSC, 85% DCI-P3, 80% Adobe RGB

Viewing Angle(H/V) 178°(H)/178°(V)

Response time 1ms(OD)-Fast IPS

Refresh Rate 165Hz

Signals
Interface DP1.2×1，HDMI 1.4×2，Audio out×1

General

Power Supply DC 12V 2.5A

Power Type Adapter

Consumption (Standard) TYP. 23W, MAX. 33 W

Consumption (Standby) <0.5W

Net Weight 3.9kg

Gross Weight 5.6kg

Tilt Angles -5°±2°/15°±2°

Swivel(angle) N/A

Pivot(angle/direction) N/A

Height Adjustment n/A

VESA 75x75mm

Dimension(W×H×D) 539.6*321.3*64.6mm(without stand)

Package(W×H×D) 649*172*443mm

Work Environment
Temperature 0°~40°(32°F~104°F)
Humidity 10%~85%

Accessory

Standard DP cable,Adapter,Stand,Base
